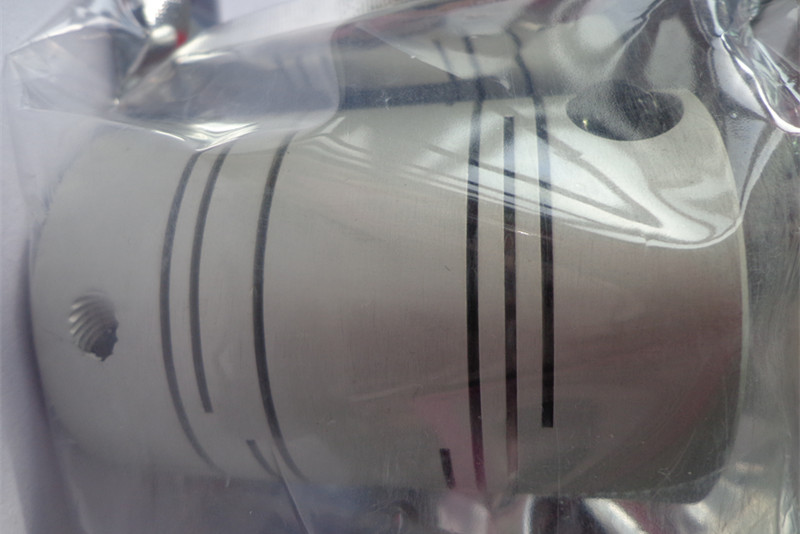

廠家直銷深圳全控光電平行聯軸器 頂絲固定平行聯軸器

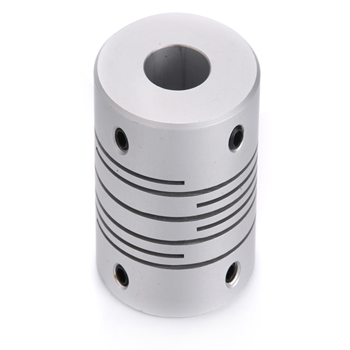

GKP-S系列定位螺絲固定平行聯軸器
平行聯軸器特點:
一體成型的金屬平行聯軸器
適用較小力矩的軸聯接零回
轉間隙彈性作用補償徑向
角向、軸向偏差
順時針與逆時針回轉特性完全相同
定位螺絲固定
平行聯軸器規格詳細技術參數
|
型號
Model |
外徑
D
(mm) |
長度
L
(mm) |
螺絲
M |
d1/d2
軸徑 (mm) |
擰緊
力矩(N.m) |
額定
扭距
(N.m) |
最大
扭距
(N.m) |
軸向
偏差
(mm) |
角向偏差(℃) |
最高軸速
(rpm) |
重量
（g） |
|
GKP12×18.5S |
12 |
18.5 |
M3 |
3-5 |
0.6 |
0.2 |
0.4 |
±0.2 |
1.5 |
30000 |
4 |
|
GKP15.5×23S |
15.5 |
23 |
M3 |
3-5 |
0.7 |
0.2 |
0.4 |
±0.1 |
1.5 |
13000 |
10 |
|
GKP16×23S |
16 |
23 |
M3 |
4-6 |
0.7 |
0.3 |
0.6 |
±0.1 |
1.5 |
13000 |
11 |
|
GKP17.5×23S |
17.5 |
23 |
M3 |
4-6 |
0.7 |
0.3 |
0.6 |
±0.1 |
1.5 |
12000 |
12 |
|
GKP19×23S |
19 |
23 |
M3 |
5-8 |
0.8 |
0.4 |
0.7 |
±0.1 |
1.5 |
11000 |
16 |
|
GKP19.5×24.5S |
19.5 |
24.5 |
M4 |
5-8 |
1.5 |
0.4 |
0.8 |
±0.15 |
1.5 |
10000 |
17 |
|
GKP20×26S |
20 |
26 |
M4 |
5-9 |
0.7 |
1.2 |
2.3 |
±0.15 |
1.5 |
18000 |
18 |
|
GKP25×31S |
25 |
31 |
M4 |
8-12 |
1.7 |
1.4 |
2.8 |
±0.15 |
1.5 |
14000 |
39 |
|
GKP25×25S |
25 |
25 |
M4 |
5-10 |
1.7 |
1.4 |
2.8 |
±0.1 |
1.5 |
10000 |
32 |
|
GKP32×41S |
38.1 |
41.3 |
M5 |
8-15 |
3.7 |
4.5 |
9 |
±0.1 |
1.5 |
8000 |
170 |
|
GKP38.1×41.3S |
50 |
51 |
M6 |
12-19 |
4 |
9.1 |
18.2 |
±0.1 |
1.5 |
7000 |
240 |
|
GKP50×51S |
32 |
41 |
M5 |
10-14 |
1.7 |
2.8 |
5.6 |
±0.15 |
1.5 |
10000 |
72 |
廠家直銷深圳全控光電平行聯軸器 頂絲固定平行聯軸器如需了解更多關于廠家直銷深圳全控光電平行聯軸器 頂絲固定平行聯軸器請聯系我們，感謝您的光臨！
|
